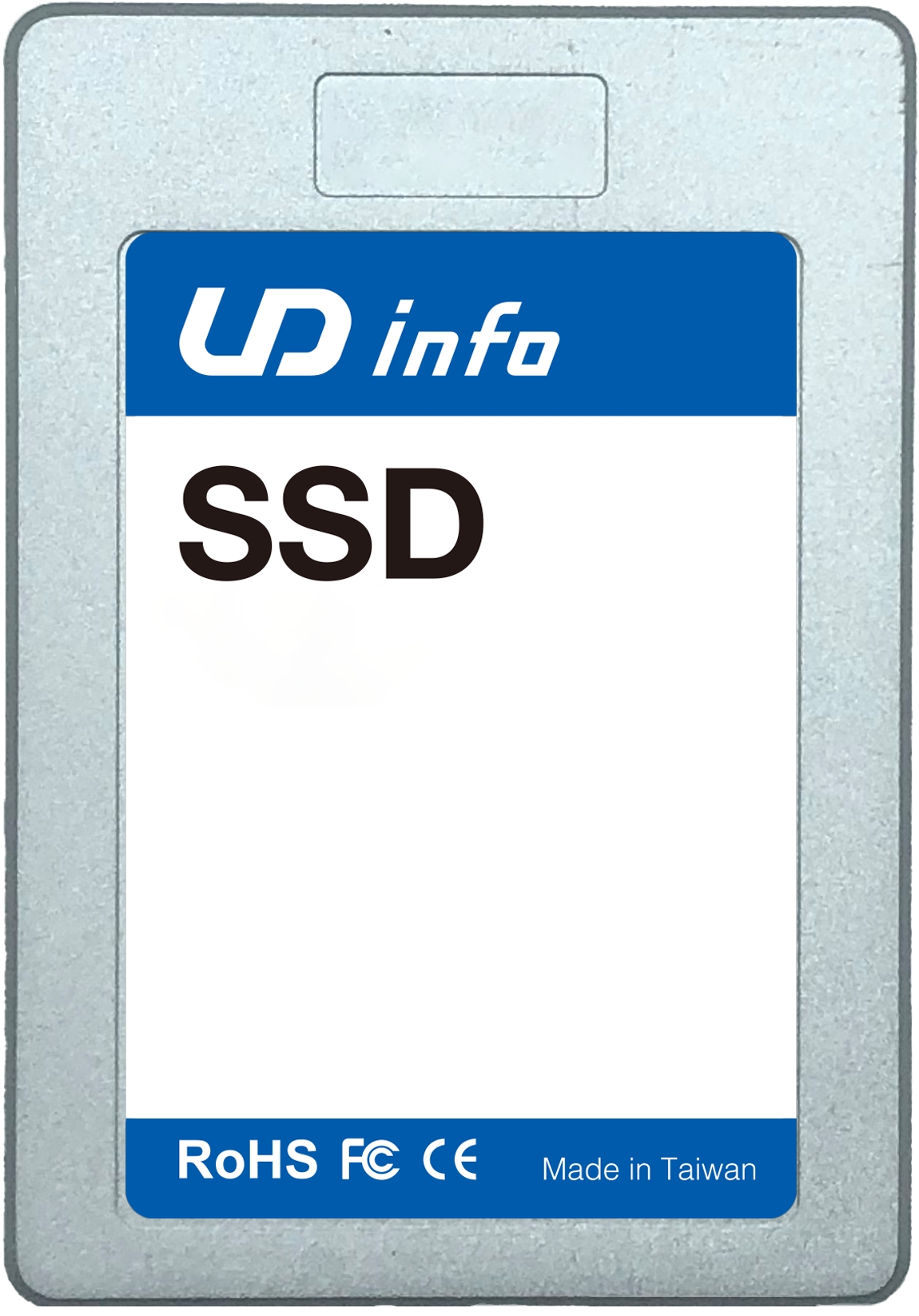

Enterprise U.2、U.3 EA / EB
PCIe Gen4 x4
-
delivers all the advantages of flash disk technology with PCIe Gen4 x4 interface, including being fully compliant with standard U.2/U.3 form factor.
-
providing low power consumption compared to traditional hard drive and hot-swapping when removing/replacing/upgrading flash disks.
-
offer a wide range of capacities up to 30,720GB and performance can reach up to 7000 MB/s (for sequential read) and 7000 MB/s (for sequential write) based on eTLC NAND flash with the DDR4..
-
the power consumption of U.2/ U.3 SSD is much lower than traditional hard drives, making it the best embedded solution for new platforms.
Download Files
Product Specifications
| Series Name | Enterprise U.2、U.3 EA / EB | ||||
|---|---|---|---|---|---|
| Interface | PCIe Gen4 x4 | ||||
| Capacity Coverage | OP = 7% : 1920/3840/7680/15360/30720 GB / OP = 28% : 1600/3200/6400/12800/25600 GB | ||||
| Performance Overview | Seq. R : 7000 MB/s ; Seq. W : 6800 MB/s | ||||
| Performance | |||||
| 3D TLC | Seq. R : 7000 MB/s ; Seq. W : 6800 MB/s | ||||
| Standard Operating Temperature | 0 ~ 70 c | ||||
| Dimension LxWxH (mm) | 100(L) x 70(W) x 15(H)mm | ||||
| Technology | #S.M.A.R.T #PLP #OPAL #Thermal Throttling #AES-XTS | ||||
| Data Sheet |  |
||||
